Word is better than Quarto?

Mail merge is back, baby!

Jac Grout

Matt Dray

27 February 2025

Backstory 📖

• NHP outputs reports: need automation/reproducibility
• Quarto was the answer… until it wasn’t!
• Solution: meet users where they are (Microsoft Word)
• Problem: how?

• We had what sounded like an obvious Reproducible Analytical Pipeline (RAP).
• Ideal solution: create a Quarto document and populate it for a named organisation with images and calculations derived from data read from Azure.
• However, the customer’s pre-existing Word template was complicated and was frequently being changed.
• It turned out to be easier to use the Word template as an input and insert our figures and values into it instead.

The Word template 📄

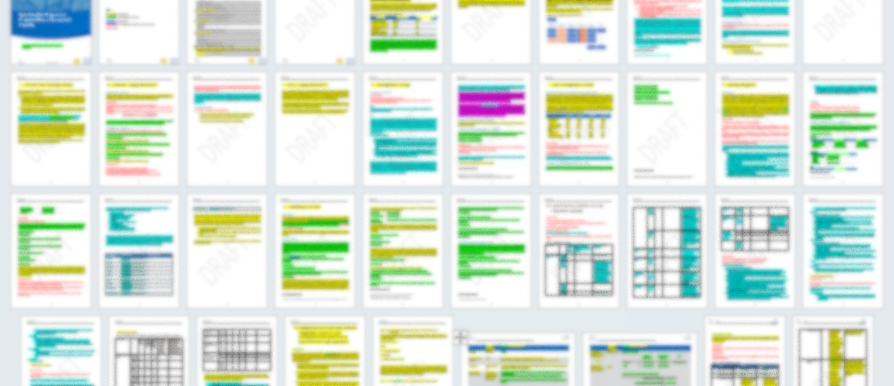

• This zoomed-out view of part of the Word document template highlights the complexity.
• The document uses a pre-existing theme; contains many specifically-formatted text chunks, tables and page orientations; and uses colour-coded highlighting to indicate who needs to edit which parts of the document.
• The document was being changed and updated quite a lot. The customers were used to amending Word documents quickly, as and when required.
• A more ‘static’ Quarto document wasn’t going to cut the mustard here.

Process ✏️

1. Record a request with a GitHub issue template.
2. Tag model-run JSONs on Azure, update site-selections file.
3. Read SharePoint template with {Microsoft365R}.
4. Insert content with {officer}.
5. Write timestamped folder with doc, results, log.
6. Check output, return to recipient.

• How do we identify chosen runs? On Aure, with run_stage metadata on results files and a list of chosen sites.
• How to confirm with model relationship managers? Expose tagged scenarios and sites via a scheduled Quarto-report.
• Basic interface: supply a scheme code, at simplest level.
• Underlying functions save figures and values independently.
• Images inserted by moving the imaginary ‘cursor’ to a known string of text in the report.
• Value-insertion is more complicated: insert ‘field’ codes into the report, insert the values to custom document properties, refresh to insert these into the fields.
• The output is a timestamped directory with the report, standalone images and values, and a log.

Generate a report 🖨️

In R:

populate_template(
  scheme_code = "XYZ",                  # create a report for this scheme
  result_sets = get_nhp_result_sets(),  # fetch results metadata from Azure
  run_stages = list(                    # list the tagged model runs
    primary = "final_report_ndg2",      # main data source for the report
    secondary = "final_report_ndg1"     # used as a comparator
  )
)

Output file structure:

YYYY-MM-DD-HHMMSS_scheme/
 ├──YYYY-MM-DD-HHMMSS_scheme.log                        # log of printed metadata
 ├──YYYY-MM-DD-HHMMSS_scheme_outputs-report_draft.docx  # populated report
 ├──figures/                                            # standalone PNG files
 └──values/                                             # CSVs of calculated values


• The interface for us is quite simple: a single function where we set the scheme code and identify the metadata ‘tag’ for the results that will form the main basis of the report and a secondary set used for comparative purposes.
• A bunch of sub-functions then read the data, calculate values, generate figures, read the Word template from SharePoint and then insert the content.
• The output is a timestamped folder that contains the populated Word doc, a subfolder of the charts and calculated values, and a log file that contains information printed to the console (details thigns like the scheme name and site selections for the run, as well as warning and error messages if present).

Insert content with {officer} 👮

For calculated values:

1. Add doc-property fields, e.g. { DOCPROPERTY item_01 }.
2. Add values to custom doc properties.
3. Update fields with corresponding property values.

For generated figures:

1. Add unique target strings, e.g. ‘[Insert Figure 8.2]’.
2. Find/replace with corresponding PNG.

• The {officer} package is crucial for inserting our content into the template.
• We use different methods to insert values and images.
• For calculated values, first add document-property fields to the Word doc (ctrl+F9); then write your calculated values to the custom document properties with officer::set_doc_properties(); then open and refresh the document (F9) to replace the fields with the corresponding value for the named property.
• To insert images, programmatically find unique target strings with {officer}’s cursor_reach() and then overwrite with images using body_add_img(); we use and a custom insert_figure_on_cursor() to do this.

‘Doing it right’ 💯

• Github: ‘learn by doing’, challenge and improve things
• Documentation/version history have saved us!
• The repo is a springboard for parallel/future work

Reflections 🪞

• Challenge your thinking, be adaptable to user needs
• Embrace agility and acknowledge fragility
• ‘The power of friendship’ keeps things working

• The default mode of ‘make a Quarto doc’ wasn’t the right fit here, but we recognised that and pivoted quickly.
• We know the solution isn’t perfect, but it is good enough.
• The process has some frailties, but we recognise them. For example, the report path being changed on SharePoint means we can’t retrieve it!
• Talking between us on the code side, but also with the user, is really important to handle changing needs and to keep the process and outputs fir for purpose.
